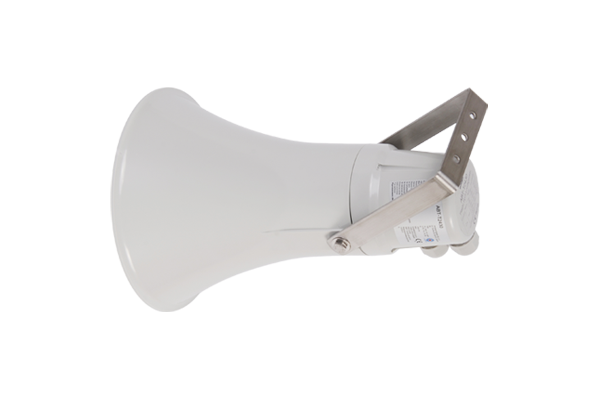

Horn type loudspeaker ABT-T2430
Features
- 30 W horn type loudspeakers for indoor and outdoor environments
- Suitable for wall or ceiling mounting
- Perfect for sport sites, at swimming pools, in expo and industrial halls, warehouses, open and underground car parks, and in open areas such as stadiums, parks, etc.
- Directional characteristic of sound emission and the highest verbal communication understanding
- Tested and approved according to EN54-24
- CPR: 1438-CPR-0640
Specifications
- Operating temperature: -25 to +70 °C
- Ambient humidity: < 95%
- Dimensions: Ø233 x 325 mm
- Weight: 2.2 kg
- Effective frequency range: 400 - 7500 Hz
- Tappings 100 V line: 30 / 15 / 7.5 / 3.75 W
- SPL @ 1 m: 120 dB / 120° (1 kHz)
- IP class: IP66
Catalogues
| Description | Release date | File size | Language |
|---|---|---|---|
| Panasonic fire alarm catalog, Norwegian | 2023-05-22 | 8.6 MB | Norwegian |
| Panasonic fire alarm catalog | 2023-05-22 | 8.59 MB | English |
| Panasonic fire alarm catalog, Spanish | 2023-05-22 | 8.66 MB | Spanish |
| PAVA Voice Alarm System catalogue | 2026-08-31 | 4.13 MB | English |
| PAVA Sistema de evacuación por voz, catálogo, Spanish | 2026-08-31 | 4.14 MB | Spanish |
| PAVA Talevarsling, catalog, Norwegian | 2026-08-31 | 4.16 MB | Norwegian |
Technical description
| Description | Release date | File size | Language |
|---|---|---|---|
| Technical description, PAVA Panasonic Voice Alarm | 2026-08-31 | 10.42 MB | English |
