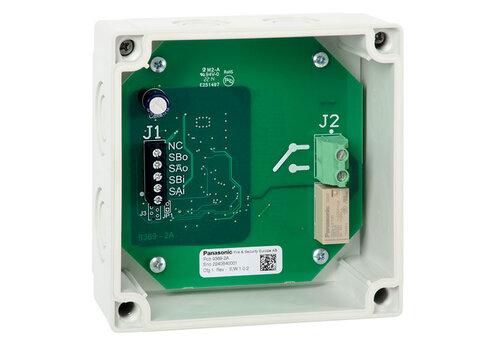

230 VAC relay output unit 4460

Features

  • Output unit for high power switching
  • 230 VAC 8A dry relay contact
  • Supports auto addressing
  • Built in isolator
  • IP 66/67
  • Approved according to EN54-17 and EN54-18
  • CPR: 0402-CPR-C500371 and 0402-CPR-C500372

Specifications

  • Operating temperature: - 10 to +50 °C
  • Ambient humidity: < 95%
  • Dimensions: 130 x 130 x 60 mm
  • Weight: 343 g
  • IP rate: IP66/67

Product downloads

Leaflets

Description Release date File size Language
Leaflet, 230 VAC relay output unit 4460 2023-10-15 224.96 KB EN
Norwegian: Produktdatablad, 230 VAC reléutgangsenhet 4460 2023-10-15 226.93 KB NO
Spanish: Ficha de produkto, 230 VAC unidad de salida de relé 4460 2023-10-15 224.89 KB ES

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2023-05-22 8.6 MB NO
Panasonic fire alarm catalog 2023-05-22 8.59 MB EN
Panasonic fire alarm catalog, Spanish 2023-05-22 8.66 MB ES

Declaration of Performances

Description Release date File size Language
DoP, 230 VAC relay output unit 2023-05-25 246.04 KB EN

BIM-data

Description Release date File size Language
BIM models, I/O units 2023-07-05 7.12 MB
BIM family models, I/O units 2023-07-05 3.78 MB
