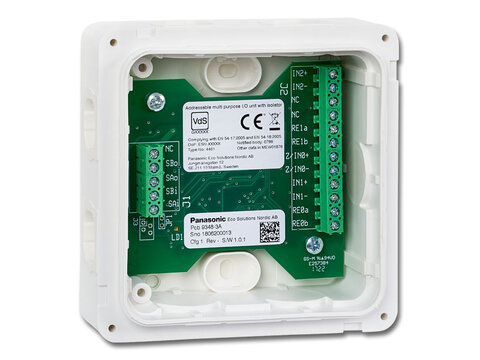

Addressable multipurpose I/O unit with isolator 4461

Features

  • Built-in isolator
  • Supports auto-addressing
  • Zone line input for conventional detectors
  • Monitored general input
  • Isolated Optocoupler input
  • Two programmable relay outputs
  • IP65 housing
  • Approved according to EN54-17 and EN54-18
  • VdS Approval: G218074
  • CPR: 0786-CPR-21579

Specifications

  • Operating temperature: - 10 to +50 °C
  • Ambient humidity: < 95%
  • Dimensions: 110 x 110 x 49 mm
  • Weight: 188 g
  • IP rate: IP65

Related products

  • DIN Rail interface kit 4463
