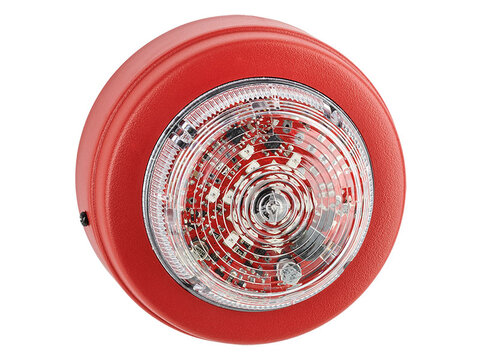

Addressable VAD with isolator 4381

Features

  • Low power addressable VAD
  • More than 40 units possible on one loop
  • Built in isolator for highest security
  • Red LED with white glass
  • Coverage XYZ
  • Tested and approved according to EN54-17 and EN54-23
  • CPR: 1438-CPR-0886

Specifications

  • Operating temperature: - 10 to +55 °C
  • Ambient humidity: < 95%
  • Dimensions: Ø 93 x 53 mm
  • Weight: 100 g
  • Flash rate: 0,5 Hz

Product downloads

Leaflets

Description Release date File size Language
Leaflet, Addressable VAD with isolator 4381 2024-04-02 425.85 KB EN
Spanish: Ficha de producto, VAD direccionable con aislador 4381 2024-04-02 406.67 KB ES
Norwegian: Produktdatablad, Adresserbar VAD med isolator 4381 2024-04-02 407.13 KB NO

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2023-05-22 8.6 MB NO
Panasonic fire alarm catalog 2023-05-22 8.59 MB EN
Panasonic fire alarm catalog, Spanish 2023-05-22 8.66 MB ES

BIM-data

Description Release date File size Language
BIM models, Alarm devices 2023-04-13 9.88 MB
BIM family models, Alarm devices 2023-07-05 5.15 MB
