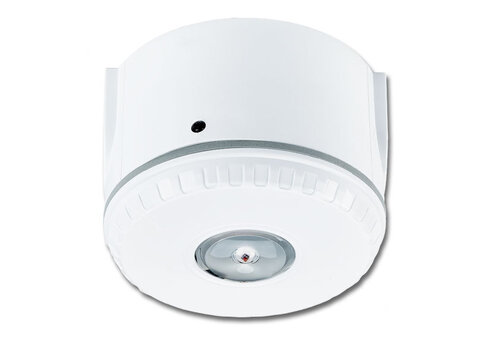

Addressable ceiling VAD with isolator 4481

Features

  • Built-in short circuit isolator.
  • Flash rate 0.5 Hz or 1 Hz
  • Coverage 3 x Ø 7.3 meters
  • Connected directly on the COM loop
  • Available in red or white
  • Ceiling-mounted
  • Tested and approved according to EN54-17 and EN54-23.
  • VdS approval: G217004
  • CPR: 0786-CPR-21532

Specifications

  • Operating temperature: - 10 to +55 °C
  • Ambient humidity: < 95%
  • Dimensions: Ø 93 x 38 mm
  • Weight: 100 g
  • Flash rate: 1 or 0,5 Hz
