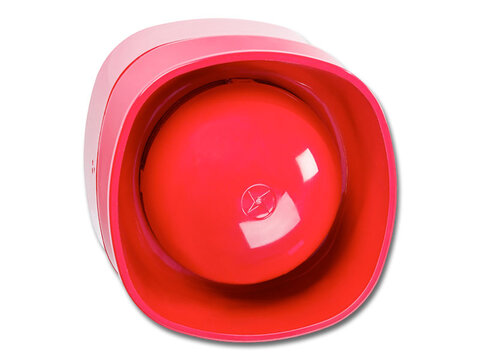

Addressable siren with isolator 4487

Features

  • Addressable with high sound output and low power consumption
  • Built-in short-circuit isolator
  • Seven different sounds and priority levels
  • Programmable for any kind of trigger condition
  • Available in red or white
  • Tested and approved according to EN54-3 and EN54-17
  • Vds Approval: G217006
  • CPR: 0786-CPR-21534

Specifications

  • Operating temperature: - 10 to +55 °C
  • Ambient humidity: < 95%
  • Dimensions: 109 x 109 x 95 mm
  • Weight: 240 g
  • Sound pressure level: Max 93 dB (A)

Product downloads

Leaflets

Description Release date File size Language
Spanish: Ficha de producto, Sirena direccionable con aislador 4487 2020-09-21 3.66 MB ES
Norwegian: Produktdatablad, Adresserbar sirene med isolator 4487 2019-03-04 1.7 MB SE
Leaflet, Addressable siren with isolator 4487 2018-03-27 3.66 MB EN

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2023-05-23 8.6 MB NO
Panasonic fire alarm catalog 2023-05-23 8.59 MB EN
Panasonic fire alarm catalog, Spanish 2023-05-23 8.66 MB ES

Declaration of Performances

Description Release date File size Language
DoP, Addressable siren with isolator 4487 2019-05-20 95.53 KB EN

Pictures

Description Release date File size Language
Picture, 4487, Addressable siren with isolator 2018-01-17 13.72 MB

BIM-data

Description Release date File size Language
BIM models, Alarm devices 2023-04-13 7.86 MB
BIM family models, Alarm devices 2023-04-13 4.33 MB
