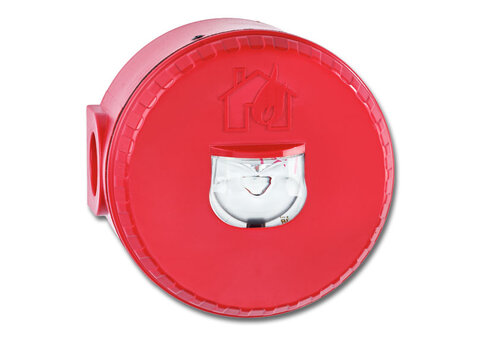

Addressable wall VAD with isolator 4480

Features

  • Built-in short circuit isolator.
  • Flash rate 0.5 or 1Hz
  • Coverage 2.4 x 5 x 5 meters
  • Connected directly on the COM loop
  • Available in red or white
  • To be mounted on the wall.
  • Tested and approved according to EN54-17 and EN54-23.
  • VdS approval: G217003
  • CPR: 0786-CPR-21531

Specifications

  • Operating temperature: - 10 to +55 °C
  • Ambient humidity: < 95%
  • Dimensions: Ø 93 x 38 mm
  • Weight: 100 g
  • Flash rate: 1 or 0,5 Hz
