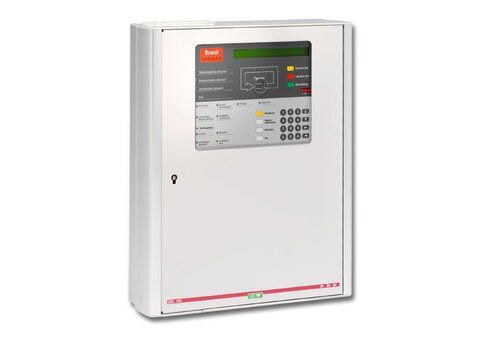

System EBL128

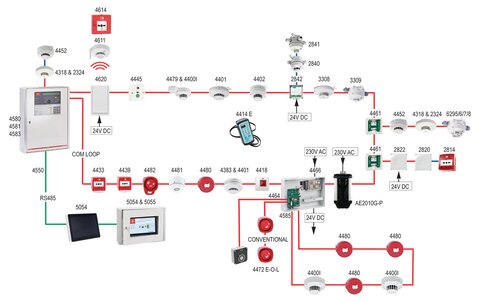

EBL128 is an analog addressable fire alarm system that fulfils EN54-2 (Control and Indicating Equipment) and EN54- 4 (Power supply). The control unit has one loop and to each CIE can 255 addressable loop units be connected.

The system can be remotely monitored and operated in a secure way and also very easily be connected to building management systems, all via an optional WEB server.

For very easy configuration of both the fire alarm system and also external controls, like fire doors, fans, escalators etc an intuitive free of charge Windows program is available.

Product downloads

Leaflets

Description Release date File size Language
Leaflet, EBL128 Control and indication equipment 4550 2018-08-06 2.12 MB EN
Norwegian: Produktdatablad, Brannalarmsentral EBL128, 4550 2019-03-04 7.08 MB NO

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2021-01-27 6.42 MB NO
Panasonic fire alarm catalog 2021-01-15 6.38 MB EN

Declaration of Performances

Description Release date File size Language
DoP, EBL128 Control and indication equipment 4550 2019-05-20 94.85 KB EN
