Rope elevator kit 6362
Features
6362 is a kit to make a rope elevator for a detector and its base.
Specifications

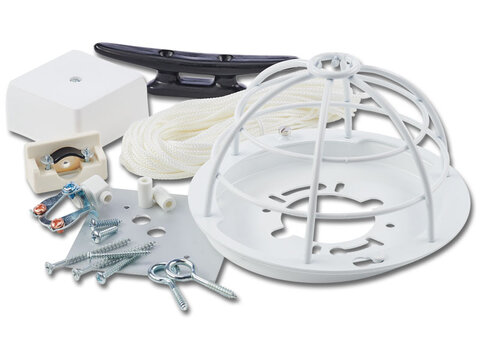

The kit consists of the following:
- Protective cover for detector (6360)
- Cleat (to fix the rope & hang it up; not shown in the figure above)
- 20 m rope (Ø 2 mm polyester)
- Metal plate
- Two screws (to fix the base)
- Two loop screws (for the rope)
- Two wood screws (to fix the cleat)
- Connection box (five screw term.)
- Cable clamp (for the conn. box)
- Rope clamp (to fix the rope)
- Cable clamp (to fix the cable)
Product applications
The rope elevator is used with any of the Panasonic heat or smoke detectors plugged in a base, allowing the user to access a detector mounted on a high ceiling height, in order to perform a test, maintenance, replace the detector, etc.
