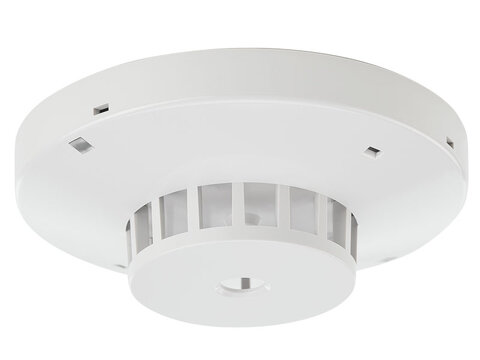

Analog heat detector 4408

Features

  • State of the art detector for highest safety
  • Algorithms for catagories A1, A2S, and BS included Selection via EBL Win
  • Possible to have both regular and alternative algorithms for highest security without nuisance alarms
  • Available in white or grey
  • Tested and approved according to EN54-5
  • VdS approval: G222044
  • CPR: 0786-CPR-21763

Specifications

  • Operating temperature: - 10 to +50 °C
  • Ambient humidity: < 95%
  • Dimensions: Ø 102 x 34 mm
  • Weight: 65 g
  • Red LED

Product downloads

Leaflets

Description Release date File size Language
Leaflet, Analog heat detector 4408 2023-05-12 115.97 KB EN
Spanish: Ficha de produkto, Detector térmico analógico 4408 2023-05-12 92.75 KB ES
Norwegian: Produktdatablad, Analog varmedetektor 4408 2023-05-12 116.58 KB NO

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2023-05-22 8.6 MB NO
Panasonic fire alarm catalog 2023-05-22 8.59 MB EN
Panasonic fire alarm catalog, Spanish 2023-05-22 8.66 MB ES

Declaration of Performances

Description Release date File size Language
DoP, Analog heat detector 4408 2023-05-13 553.54 KB EN
