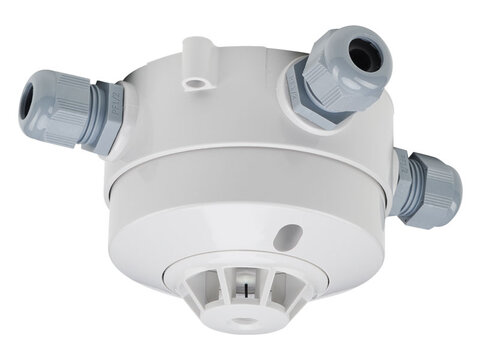

Enclosed analog heat detector 4409

Features

  • State of the art detector for highest safety
  • Algorithms for categories A1, A2S, and BS included Selection via EBL Win
  • Waterproof - IP67
  • Possible to have both regular and alternative algorithms for highest security without nuisance alarms
  • Connectors for external indicator
  • Tested and approved according to EN54-5
  • VdS approval: G222045
  • CPR: 0786-CPR-21764

Specifications

  • Operating temperature: - 20 to +65 °C
  • Ambient humidity: < 95%
  • Dimensions: Ø 100 x 78 mm
  • Weight: 245 g
  • Red LED
  • IP67

Product downloads

Leaflets

Description Release date File size Language
Spanish: Ficha de produkto, Detector térmico analógico estanco 4409 2023-05-14 130.78 KB ES
Leaflet, Enclosed heat detector 4409 2023-05-14 130.13 KB EN
Norwegian: Produktdatablad, Tett Analog varmedetektor 4409 2023-05-14 130.72 KB NO

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2023-05-22 8.6 MB NO
Panasonic fire alarm catalog 2023-05-22 8.59 MB EN
Panasonic fire alarm catalog, Spanish 2023-05-22 8.66 MB ES

Declaration of Performances

Description Release date File size Language
DoP, Enclosed analog heat detector 4409 2023-05-14 606.15 KB EN
