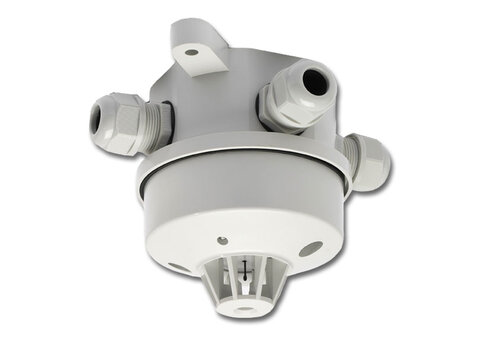

Intrinsically safe analog heat detector 2841

Features

  • Addressable intrinsically safe heat detector for fire detection in hazardous areas
  • IP66/67 for outdoor use or in humid areas
  • Up to 20 detectors can be connected to each IS barrier unit
  • Three standard heat detection algorithms available
  • Tested and approved according to EN54-5
  • ATEX certificate: DEKRA 11ATEX0107
  • CPR: 2831-CPR-F2749

Specifications

  • Voltage: 24 V DC 15-30 mA
  • Operating temperature: - 10 to +55 °C
  • Ambient humidity: < 95%
  • Dimensions: Ø 102 x 65 mm
  • Weight: 325 g
  • IP66/67
  • Red LED
  • ATEX: II 1 G Ex ia IIC T5 Ga

Related products

Product downloads

Leaflets

Description Release date File size Language
Leaflet, Intrinsically safe analog heat detector 2841 2023-11-07 154.27 KB EN
Spanish: Ficha de producto, Detector térmico analógico Intrínsicamente Seguro 2841 2024-04-15 155.84 KB ES
Norwegian: Produktdatablad, Varmedetektor - EX / ATEX 2841 2023-11-07 155.76 KB NO

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2023-05-22 8.6 MB NO
Panasonic fire alarm catalog 2023-05-22 8.59 MB EN
Panasonic fire alarm catalog, Spanish 2023-05-22 8.66 MB ES

Declaration of Performances

Description Release date File size Language
DoP, Intrinsically safe analog heat detector 2841 2021-11-17 557.33 KB EN

BIM-data

Description Release date File size Language
BIM models, Intrinsically safe detectors (ATEX) 2023-07-05 11.13 MB
BIM family models, Intrinsically safe detectors (ATEX) 2023-07-05 3.5 MB
User manual, BIM Library 2024-02-20 2.92 MB
