Product downloads
Leaflets
| Description | Release date | File size | Language |
|---|---|---|---|
| Spanish: Ficha de producto, Detector de Llama IR3 Exd Talentum | 2020-09-21 | 3.58 MB | ES |
| Leaflet, Flame detector Talentum IR3 Exd 3412 | 2019-12-20 | 3.57 MB | EN |

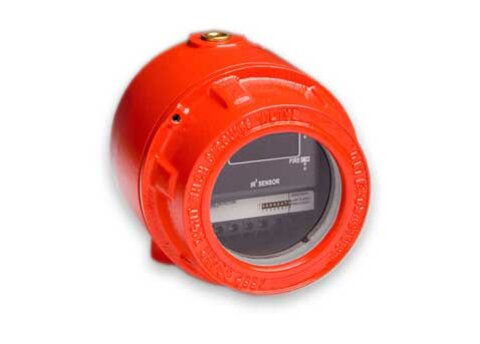

Flame detector Talentum IR3 Exd 3412
Features
- Excellent immunity to false alarms
- Suitable for use in Zone 1, 21, 2 and 22
- Multi spectrum detection
- High sensitivity also in contaminated environments
- Selectable sensitivity levels
- Selectable response speed
- Built in auto and manual test
- Tested and approved according to EN54-10
- VdS approval: G212189
- CPR: 0832-CPR-F0578
- SIL2: C127_CT003_(2.0)
- ATEX: Ex II 2GD Ex ia dIIC T4 Gb
- Ex tb IIIC T 135°C Db IP66 A2I
Specifications
- Operating temperature: - 10 to +55°C
- Ambient humidity: < 95%
- Dimensions: 150 x 146 x 137 mm
- Weight: 2.5 kg
- IP66
