Product downloads
Leaflets
| Description | Release date | File size | Language |
|---|---|---|---|
| Spanish: Ficha de producto, Detector de llama combinado UV/IR2 Talentum | 2020-09-21 | 3.51 MB | ES |
| Leaflet, Flame detector Talentum UV/IR2, 3408 | 2019-12-20 | 3.51 MB | EN |

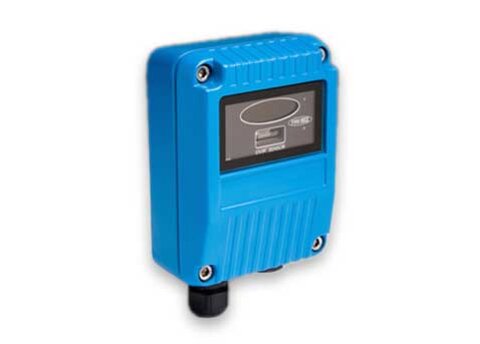

Flame detector Talentum UV/IR2 3408
Features
- Highest immunity to false alarms
- Suitable also for outdoor areas
- Proven response to multi type fuels
- Selectable sensitivity levels
- Selectable response speed
- Optical self-test
- Tested and approved according to EN54-10
- VdS approval: G212190
- CPR: 0832-CPR-F0584
- SIL2: C127_CT003_(2.0)
Specifications
- Operating temperature: - 10 to +55°C
- Ambient humidity: < 95%
- Dimensions: 142 x 108 x 82 mm
- Weight: 2 kg
- IP66
