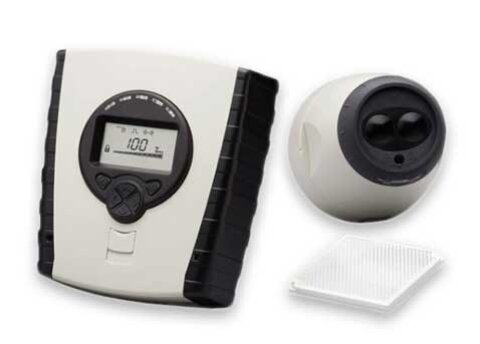

Reflective beam detector FireRay 5000 100M CE 3405

Features

  • Reflective beam detector with industry leading optics
  • Low level system controller for up to two detectors
  • Configurable for use between 8 and 100 meters
  • Integral laser and beam alignment for fast installation
  • Motorised for automatic building movement compensation
  • Contamination compensation
  • Tested and approved according to EN54-12
  • VdS approval: G208017
  • CPR: 0832-CPR-F0390

Specifications

  • Operating temperature: - 10 to +55°C
  • Ambient humidity: < 93%
  • Dimensions: 134 x 131 x 134 mm
    Controller 202 x 230 x 87 mm
  • Weight: 0.5 kg
    Controller 1.0 kg
  • IP44

Related products

  • Adjustment bracket 5000-201
  • Anti-condensation heater 5000-204
  • Long range kit 1010-300
  • Comissioning & Maintenance kit 1150-000
