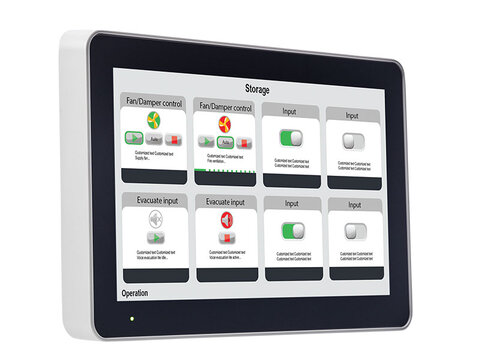

Display unit 5054

Features

  • Selectable function as:
    • Presentation unit
    • Fire brigade panel
    • Alert annunciation unit
    • General control panel
  • Color touch screen 10.1"
  • Up to 30 units can be connected to one EBL Control unit
  • Up to 1200 meter to the unit farthest away from the CIE
  • Highest security, fully redundant 24V and RS485 connection

Specifications

  • Operating temperature: -5 to +40 °C
  • Ambient humidity: < 90%
  • Dimensions: 169 x 264 x 56 mm
  • Weight: 1400 g
  • Buzzer
  • USB connector
  • IP30

Related products

  • Metal cabinet for display unit 5055
