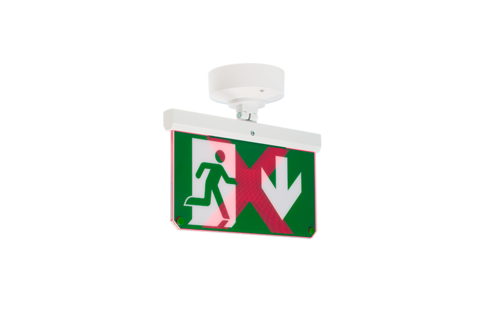

Exit light MX25 red X & MX40 red X

Features

  • For safest evacuation possible:
    • Dynamic control of the evacuation routes
    • Minimised risk to enter smoke filled areas
    • For all buildings with more than one exit
  • Cost effective and eco friendly:
    • LED Technology
    • Low voltage
    • Low maintenance
    • Self-contained
    • Simple and fast installation
  • Innovative and intelligent:
    • Monitored for highest safety
    • Addressable for individual control and testing
    • Automatic test system for highest safety and comfort
  • Tested and approved according to EN60592-2-22, EN1838, EN62034, and EN ISO:7010

Specifications

  • Batteries: Ni-MH 1.2V / 1 h
  • Operating temperature: - 0 to +55 °C
  • Ambient humidity: < 95%
  • Dimensions: MX25: 102 x 261 x 215 mm, MX40: 102 x 411 x 290 mm
  • Weight: MX25: 395 g, MX40: 710 g
  • Viewing distance: MX25: 25 m,  MX40: 40 m
  • Luminance: >2 cd/m2

Product downloads

Leaflets

Description Release date File size Language
Leaflet, Exit Light MX25 red X and MX40 red X 2021-06-14 273.85 KB EN
Spanish: Ficha de producto, Luz de evacuación adaptativa MX25 rojo X y MX40 rojo X 2021-06-14 273.61 KB ES
Norwegian: Produktdatablad, Markeringslys MX25 rød X og MX40 rød X 2021-06-14 274.38 KB NO

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2023-05-22 8.6 MB NO
Panasonic fire alarm catalog 2023-05-22 8.59 MB EN
Panasonic fire alarm catalog, Spanish 2023-05-22 8.66 MB ES
Norwegian, EMEX, Nødlys & Markeringslys, brosjyre 2022-09-11 953.74 KB NO
EMEX, Emergency & exit lights brochure 2023-07-03 14.94 MB EN
Spanish, EMEX, Luces de evacuación y emergencia folleto 2022-09-08 948.11 KB ES

BIM-data

Description Release date File size Language
BIM models, Exit light and Emergency light 2023-07-05 313.14 MB
BIM family models, Exit light and Emergency light 2023-07-05 35.94 MB
