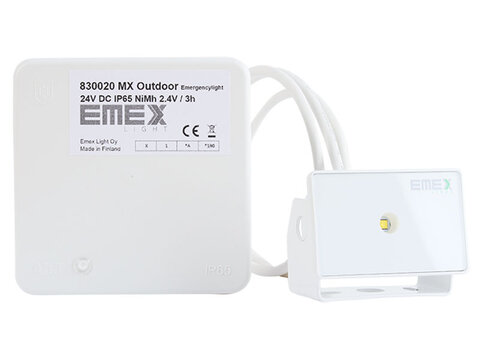

MX Outdoor Emergency light

Features

  • Compact emergency light for outdoor use, or cold areas
  • Optimised for escape routes and open areas
  • Luminaire mounted in cold areas down to -30 degrees
  • Electronics unit mounted inside or down to -20 degrees
  • 3 h battery back up
  • Cost effective and eco friendly:
    • Modern LED technology
    • Low voltage
    • Self contained
    • Automated self-testing

Specifications

  • Tested and approved according to EN60598-2-22, EN1838, EN62034, and EN ISO 7010
  • Batteries: NiMH, 2.4V – 2400mAH
  • Operating temperature: - 30 to +45 °C
  • Ambient humidity: < 95%
  • Dimensions Luminaire: 72 x 45 x 50 mm
  • Dimensions Electronic box: 104 x 104 x 48 mm
  • Weight Luminaire: 159 g
  • Weight Electronic box: 242 g
  • Luminance: 1 – 10 lux
