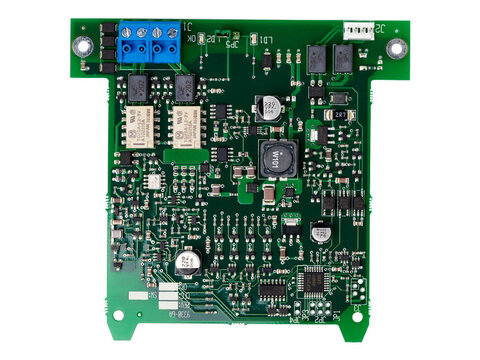

COM-loop repeater 4585

Features

  • One new 350 mA SUB-loop per expansion board
  • Mounted as an expansion board inside the External power supply 4466
  • Supports auto-addressing
  • Up to 4 expansion boards on each loop

Specifications

  • Operating temperature: - 5 to +40 °C
  • Ambient humidity: < 95%
  • Dimensions: 108 x 114 x 15 mm
  • Weight: 55 g
  • 24 V DC, via 4466
