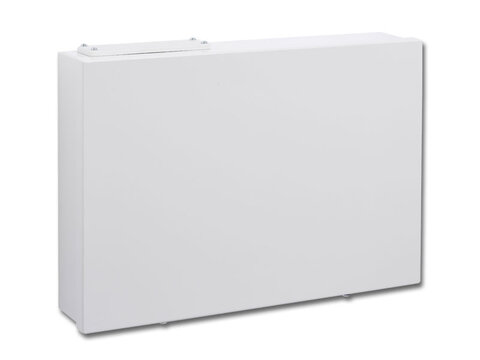

External power supply 4466

Features

  • Monitored for mains, charging, and communication errors
  • Space for two expansion boards of type 4464 and 4585
  • Built in short circuit isolator
  • Automatically 4 A output at fire alarm
  • Space for 7.2 Ah batteries inside housing
  • Up to 42 Ah in external battery cabinet
  • Tested and approved according to EN54-4,
  • EN54-17 and EN54-18
  • VdS approval: G219025
  • CPR: 0786-CPR-21627

Specifications

  • Voltage: 230 V AC
  • Operating temperature: - 5 to +40 °C
  • Ambient humidity: < 95%
  • Dimensions: 298 x 424 x 95 mm
  • Weight: 4.7 kg including batteries
  • IP30

Product downloads

Leaflets

Description Release date File size Language
Leaflet, COM-loop repeater 4585 2019-08-29 8.21 MB EN
Leaflet, 2 voltage outputs board 4464 2019-08-23 8 MB EN
Norwegian: Produktdatablad, Ekstern strømforsyning 4466 2019-08-23 4.34 MB NO
Spanish: Ficha de producto, Fuente de alimentación externa 4466 2020-09-21 3.51 MB ES
Leaflet, External power supply 4466 2019-08-23 4.33 MB EN

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2021-01-27 6.42 MB NO
Panasonic fire alarm catalog 2021-01-15 6.38 MB EN
Panasonic fire alarm catalog, Spanish 2020-11-28 6.37 MB ES

Certificates & Approvals

Description Release date File size Language
VdS (EN54-4, EN54-17, EN54-18), External power supply 4466 2020-08-26 3.24 MB EN

Declaration of Performances

Description Release date File size Language
DoP, External power supply 4466 2019-08-23 237.07 KB EN
