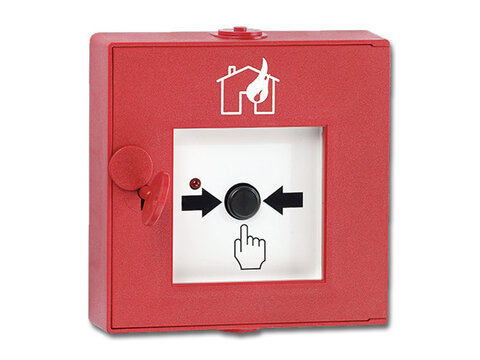

Wireless manual call point 4614

Features

  • Ideal in buildings where it is difficult to hide cables and where extensions are required
  • Minimum 170 m transmission range (open air)
  • 6 years battery life
  • High flexibility: Up to 4 base stations on each COM loop and up to 16 wireless units on each base station
  • Two batteries included
  • Tested and approved according to EN54-11 and EN54-25
  • VdS approval: G219008
  • CPR: 0786-CPR-21613

Specifications

  • Batteries: 3V Lithium/1600 mAh
  • Operating temperature: - 10 to +55 °C
  • Frequency: 868 MHz
  • Ambient humidity: < 95%
  • Dimensions: 135 x 135 x 36 mm
  • Weight: 250g, 2 batteries included
  • Red LED
