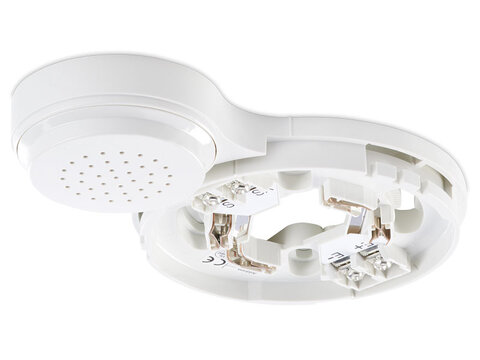

Addressable sounder base 3379

Features

  • For installations where an alarm device is required in the same room as a detector
  • Three different sound or priority levels
  • Connected directly on the COM loop
  • Programmable for any kind of trigger condition
  • Tested and approved according to EN54-3
  • VdS approval: G210028
  • CPR: 0786-CPR-20954

Specifications

  • Operating temperature: - 10 to +50 °C
  • Ambient humidity: < 95%
  • Dimensions: 160 x 102 x 22 mm
  • Weight: 92 g
  • Sound pressure level: Max 86 dB (A)

Product downloads

Leaflets

Description Release date File size Language
Leaflet, Addressable sounder base 3379 2020-12-21 6.44 MB EN
Norwegian: Produktdatablad, Adresserbar sokkelsirene 3379 2020-12-21 4.04 MB NO
Spanish: Ficha de producto, Base de sirena direccionable 3379 2020-12-21 6.46 MB ES

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2021-01-27 6.42 MB NO
Panasonic fire alarm catalog 2021-01-15 6.38 MB EN
Panasonic fire alarm catalog, Spanish 2020-11-28 6.37 MB ES

Declaration of Performances

Description Release date File size Language
DoP, Addressable sounder base 3379 2019-05-28 106.46 KB EN
