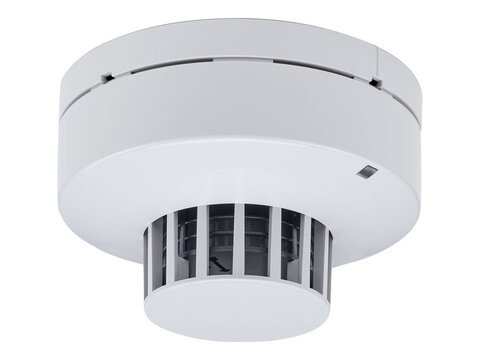

Analog multi detector with CO 4402

Features

  • State of the art detector for highest safety
  • Detection by heat, heat and smoke, or smoke and CO
  • Distinguished between a real fire and nuisance alarm with highest security available
  • Ideal for environments with non-fire smoke, for example Theaters, discotheques and oil-mist.
  • High-tech mesh net prevents dust and insects to enter the detection chamber.
  • Automatic service signal to minimise maintenance
  • CE
  • Complies with EN54-31, class NT

Specifications

  • Operating temperature: - 10 to +50 °C
  • Ambient humidity: < 95%
  • Dimensions: Ø 102 x 63 mm
  • Weight: ~130 g
  • Red LED

Product downloads

Leaflets

Description Release date File size Language
Leaflet, Analog multi detector with CO 4402 2023-06-08 157.02 KB EN
Norwegian: Produktdatablad, Analog multidetektor med CO 4402 2023-06-08 157.17 KB NO
Spanish: Ficha de produkto, Detector analógico multi sensor con CO 4402 2023-06-08 159.8 KB ES

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2023-05-22 8.6 MB NO
Panasonic fire alarm catalog 2023-05-22 8.59 MB EN
Panasonic fire alarm catalog, Spanish 2023-05-22 8.66 MB ES

BIM-data

Description Release date File size Language
BIM models, detectors without isolator 2023-07-05 44.02 MB
BIM family models, Detectors without isolators 2023-07-05 21.44 MB
User manual, BIM Library 2024-02-20 2.92 MB
