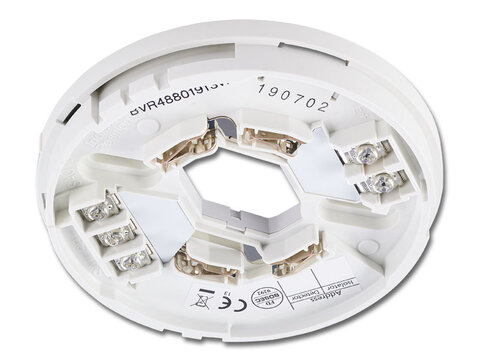

Analog base with isolator 4313

Features

  • Common base for addressable detectors
  • Built-in short-circuit isolator
  • Screw terminals for easy installation of any cable type
  • One External Indicator (LED) can be connected to the base
  • Cable entry from top or side
  • Recess for label holder included
  • Tested and approved according to EN54-17
  • VdS approval: G209033
  • CPR: 0786-CPR-21199

Specifications

  • Operating temperature: - 10 to +50 °C
  • Ambient humidity: < 95%
  • Dimensions: Ø 102 x 15 mm
  • Weight: 65 g

Product downloads

Leaflets

Description Release date File size Language
Leaflet, Analog base with isolator 4313 2020-12-10 7.63 MB EN
Spanish: Ficha de Producto, Base analógica con aislador 4313 2020-12-10 7.17 MB ES
Norwegian: Produktdatablad, Analog sokkel med isolator 4313 2020-12-10 5.25 MB NO

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2021-01-27 6.42 MB NO
Panasonic fire alarm catalog 2021-01-15 6.38 MB EN
Panasonic fire alarm catalog, Spanish 2020-11-28 6.37 MB ES

Declaration of Performances

Description Release date File size Language
DoP, Analog base with isolator 4313 2019-05-28 112.14 KB EN
