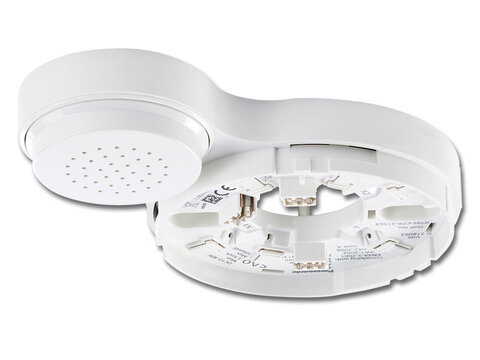

Addressable sounder base 4479

Features

  • For installations where an alarm device is required in the same room as a detector
  • Three different sound or priority levels
  • Seven selectable tones
  • Connected directly on the COM loop
  • Programmable for any kind of trigger condition
  • Normal sound pressure level (EN54-3)
  • Low sound pressure level (≈ 84 dB)
  • Tested and approved according to EN54-3
  • VdS approval: G218002
  • CPR: 0786-CPR-21564

Specifications

  • Operating temperature: - 10 to +55 °C
  • Ambient humidity: < 95%
  • Dimensions: 160 x 102 x 25.4 mm
  • Weight: 102.5 g
  • Sound pressure level: Max 90 dB (A)

Product downloads

Leaflets

Description Release date File size Language
Leaflet, Addressable sounder base 4479 2023-08-07 235 KB EN
Norwegian: Produktdatablad, Adresserbar sokkelsummer 4479 2023-08-07 216.91 KB NO
Spanish: Ficha de producto, Base de sirena direccionable con aislador 4479 2023-08-07 215.92 KB ES

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2023-05-22 8.6 MB NO
Panasonic fire alarm catalog 2023-05-22 8.59 MB EN
Panasonic fire alarm catalog, Spanish 2023-05-22 8.66 MB ES

Declaration of Performances

Description Release date File size Language
DoP, Addressable sounder base 4479 2019-11-27 138.85 KB EN

BIM-data

Description Release date File size Language
BIM models, Alarm devices 2023-04-13 9.88 MB
BIM family models, Alarm devices 2023-07-05 5.15 MB
