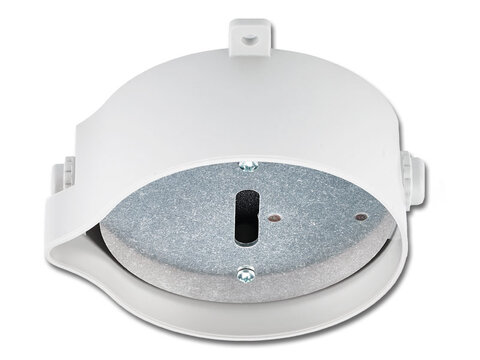

Detector heater 6228

Features

  • Prevention of condensation
  • For detectors in cold or humid environments
  • Self regulating with a surface temperature of 40 (±7) °C
  • Increases the ambient temperature of -20 °C to -10°C for the mounted detector
  • Allowing it to work within the specified environmental conditions
  • Fast connectors for power supply cables
  • CE

Specifications

  • Voltage: 12-30 V AC/DC
  • Operating temperature: -20 to +55 °C
  • Ambient humidity: < 95%
  • Dimensions: Ø 108 x 45 mm
  • Weight: 142 g
