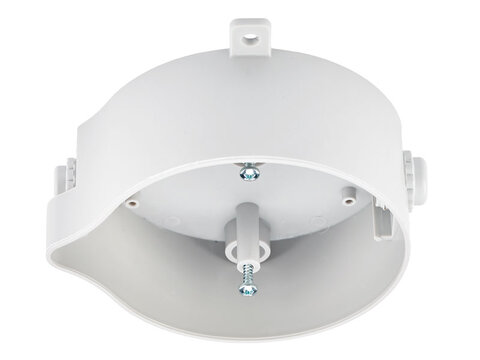

Drip pan for detector 6218

Features



  • Used togther with any of Panasonics heat or smoke detectors plugged in a base
  • The drip pan has two mounting flanges on the outside to make it leakproof from the ceiling
  • Protects against damp and moisture
  • For cable entries supplied with:
    • one cable gland (Pr15.2) for cable diameter 6-8 mm (incl. a lock nut (Pr15.2))
    • one cable gland (Pr18.6) for cable diameter 7-10 mm

Specifications

  • Operating temperature: - 10 to +50 °C
  • Ambient humidity: < 95%
  • Dimensions: Ø 108 x 45 mm
  • Weight: 70 g

Product downloads

Leaflets

Description Release date File size Language
Leaflet, Drip pan for detector 6218 2023-08-07 149.55 KB EN
Norwegian: Produktdatablad, Fuktbeskyttelse for detektor, 6218 2023-08-07 150.62 KB NO
Spanish: Ficha de producto, Protector contra humedad 6218 2023-08-07 150.07 KB ES

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2023-05-22 8.6 MB NO
Panasonic fire alarm catalog 2023-05-22 8.59 MB EN
Panasonic fire alarm catalog, Spanish 2023-05-22 8.66 MB ES
