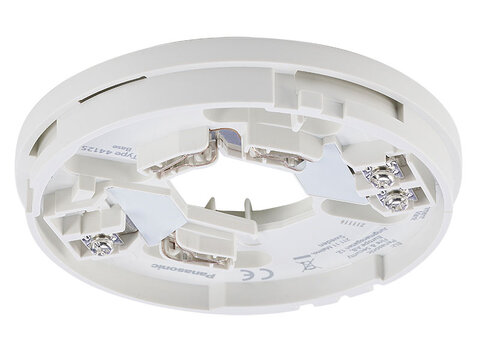

Base 4412S
Features
- Common base for isolator detector
- Screw terminals for easy installation also with the thickest cables
- Possibility to connect to external indicator 4418
- Low profile - build height 6 mm
- Cable entry from top or side
- Recess for label holder
- CE
- Compliant with EN54-5 and EN54-7
Specifications
- Operating temperature: - 10 to +50 °C
- Ambient humidity: < 95%
- Dimensions: Ø 102 x 15 mm
- Weight: 59 g
