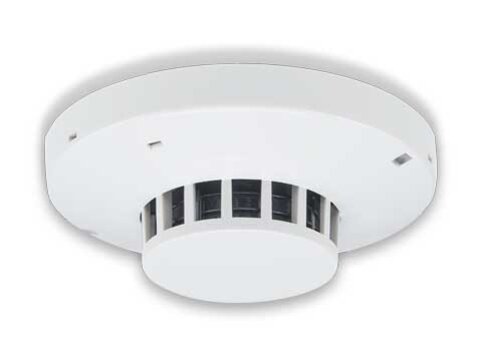

Analog smoke detector with isolator 4401I

Features

  • State of the art detector for highest safety
  • Built-in short circuit isolator
  • Supports auto-addressing
  • Nuisance alarms reduced by up to 46% by using Advance mode:
    • Variable sensitivity and time delay based on smoke changes just before and after fire alarm level has been reached
    • A learning function will ensure that the most suitable fire alarm algorithm is always used
  • High-tech mesh net prevents dust and insects to enter the detection chamber
  • Installation date and automatic service signal
  • Tested and approved according to EN54-7 and EN54-17
  • VdS approval: G220004
  • CPR: 0786-CPR-21673

Specifications

  • Operating temperature: - 10 to +50 °C
  • Ambient humidity: < 96%
  • Dimensions: Ø 102 x 34 mm
  • Weight: 75 g
  • Red LED

Product downloads

Leaflets

Description Release date File size Language
Norwegian: Produktdatablad, Analog røykdetektor med isolator 4401I 2024-05-22 157.33 KB NO
Leaflet, Analog smoke detector with isolator 4401I 2024-05-22 156.79 KB EN
Spanish: Ficha de producto, Detector de humo analógico con aislador 4401I 2024-05-22 137.63 KB ES

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2023-05-22 8.6 MB NO
Panasonic fire alarm catalog 2023-05-22 8.59 MB EN
Panasonic fire alarm catalog, Spanish 2023-05-22 8.66 MB ES

Declaration of Performances

Description Release date File size Language
DoP, Analog smoke detector with isolator 4401I 2022-04-20 124.95 KB EN

BIM-data

Description Release date File size Language
BIM models, Detectors with isolator 2023-07-05 16.28 MB
BIM family models, detectors with isolators 2023-07-05 6.44 MB
User manual, BIM Library 2024-02-20 2.92 MB
