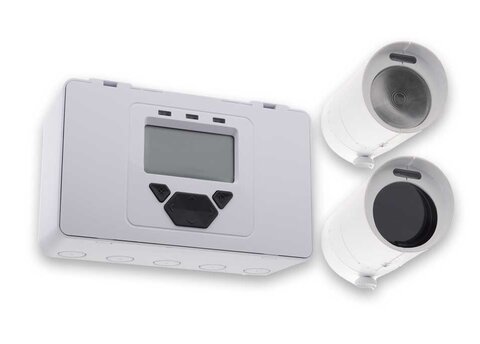

End to end beam detector FireRay 3000 system 3406

Features

  • Ideal for use when the line of sight is narrow or in buildings with reflective surfaces
  • End to End beam detector with industry leading optics
  • Low level system controller for up to two detectors
  • Configurable for range between 5 and 120 meters
  • Laser alignment for fast installation
  • Patented light cancellation technology for minimised false alarm risk
  • Tested and approved according to EN54-12
  • VdS approval: G212034
  • CPR: 0786-CPR-21162

Specifications

  • Operating temperature: - 10 to +55°C
  • Ambient humidity: < 93%
  • Dimensions: 77 x 77 x 161 mm
    Controller 203 x 124 x 72 mm
  • Weight: 207g
    Controller 606g
  • IP54
