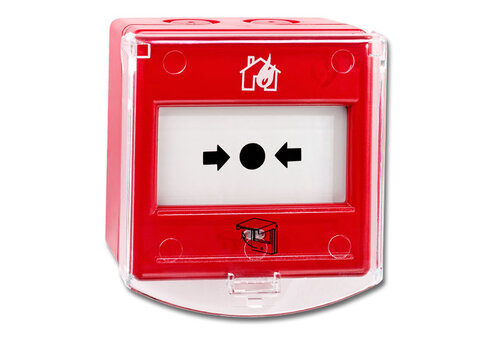

Enclosed addressable manual call point with isolator 4439

Features

  • IP 66 for use outdoor or in humid areas.
  • Polycarbonate flap to protect against accidental operation
  • Built-in short-circuit isolator
  • Configurable polling LED on the front
  • Tested and approved according to EN54-11 and EN54-17
  • VdS Approval: G 213005
  • CPD: 0786-CPD-21236

Specifications

  • Operating temperature: - 25 to +50 °C
  • Ambient humidity: < 90%
  • Dimensions: 87 x 87 x 66 mm
  • Weight: 237 g
  • IP rate: IP66

Related products

  • Replacement glass (10 pcs) 2347
  • Replacement plocarbonate flap (10 pcs) 2348

Product downloads

Leaflets

Description Release date File size Language
Leaflet, Enclosed addressable manual call point with isolator 4439 2023-08-07 290.67 KB EN
Spanish: Ficha de producto, Pulsador manual direccionable de alarma estanco con aislador 4439 2023-10-08 291.19 KB ES
Norwegian: Produktdatablad, Tett adresserbar manuell melder med isolator 4439 2023-08-07 291.17 KB NO

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2023-05-22 8.6 MB NO
Panasonic fire alarm catalog 2023-05-22 8.59 MB EN
Panasonic fire alarm catalog, Spanish 2023-05-22 8.66 MB ES

Declaration of Performances

Description Release date File size Language
DoP, Enclosed addressable manual call point with isolator 4439 2019-05-19 103.64 KB EN

BIM-data

Description Release date File size Language
BIM models, Manual call point 2023-07-05 7.64 MB
BIM family models, Manual call point 2023-07-05 3.14 MB
