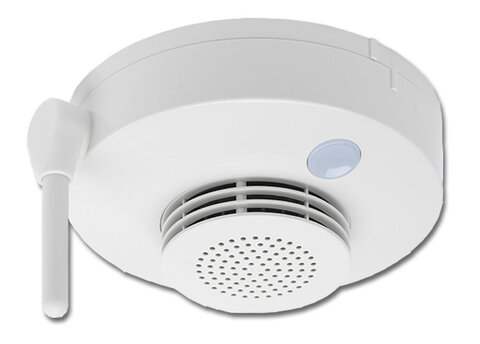

Wireless photoelectric smoke detector 4611

Features

  • Ideal in buildings where it is difficult to hide cables and where extensions are required.
  • Built-in sounder, controlled by the C.I.E.
  • Minimum 170 m transmission range (open air).
  • 6 years battery life.
  • High flexibility: Up to 4 base stations on each COM loop and up to 16 wireless units on each base station.
  • COM loop and up to 16 detectors on each base station.
  • Tested and approved according to EN54-7 and EN54-25.
  • VdS approval: G214074
  • CPR: 0786-CPR-21392

Specifications

  • Batteries: 3V Lithium/1600 mAh
  • Operating temperature: - 10 to +55 °C
  • Frequency: 868 MHz
  • Ambient humidity: < 95%
  • Dimensions: Ø 100 x 45 mm
  • Weight: ~165 g, 2 batteries included
  • Sound pressure level: >85 dB
