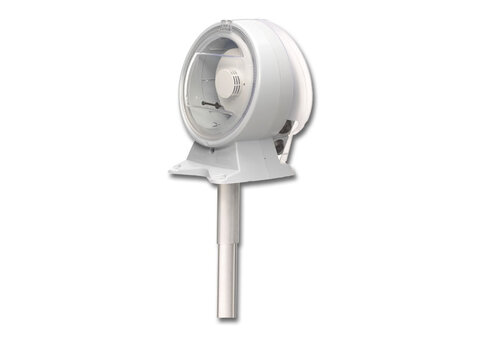

Duct detector chamber 6377

Features

  • One-pipe air sampling system Uniguard Superflow
  • Patented venturi pipe and duct housing
  • Easy service and maintenance
  • Test hole in cover
  • The venturi pipes are available in 3 lengths; 0.6, 1.5, and 2.8 meter
  • Venturi pipes with built-in fan
  • Designed to comply with EN54-27

Specifications

  • Operating temperature: - 10 to +50 °C
  • Ambient humidity: < 95%
  • Dimensions: 2280 x 187 x 184 mm
  • Weight: 690 g (housing only)
