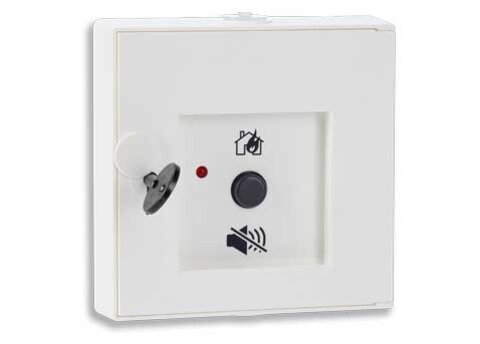

Wireless local alarm acknowledge unit 4645

Features

  • Eliminates unnecessary alarms in the system and to the fire brigade.
  • Suitable for apartments or similar locations.
  • Installed together with a smoke detector and a sounder base.
  • If the detector goes into alarm the sounder is activated and the LED is lit. The user pushes the button within 30 seconds (configurable) and then gets 3 minutes (configurable) to ventilate the smoke from the room.
  • Minimum 170 m transmission range (open air)
  • 6 years battery life
  • High flexibility: Up to 4 base stations on each
  • COM loop and up to 16 wireless units on each base station

Specifications

  • Batteries: 3V Lithium/1600 mAh
  • Operating temperature: - 10 to +55 °C
  • Frequency: 868 MHz
  • Ambient humidity: < 90%
  • Dimensions: 135 x 135 x 36 mm
  • Weight: 250g, 2 batteries included
  • Red LED
