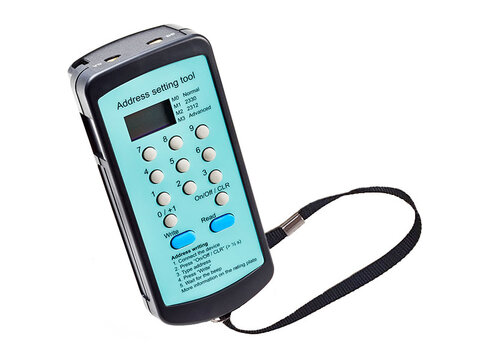

Address setting tool 4414 E

Features

  • Fast and easy to use tool for address setting of COM loop units
  • Can set a COM loop unit to default value, address 0
  • Configurable auto turn off time
  • Automatic mode setting of advanced detectors
  • Long battery lifetime - up to 50000 readings
  • Cable included to support all types of loop devices

Specifications

  • Batteries: 4x1.5V Alkaline
  • Operating temperature: 0 to +40 °C
  • Ambient humidity: < 95%
  • Dimensions: 153 x 68 x 42 mm
  • Weight: 320 g incl batteries

Product downloads

Leaflets

Description Release date File size Language
Spanish: Ficha de producto, Herramienta para direccionar detectores 4414 E 2022-04-22 169.54 KB ES
Norwegian: Produktdatablad, Addresseringsverktøy 4414 E 2022-04-22 169.09 KB NO
Leaflet, Address setting tool 4414 2022-04-22 167.79 KB EN

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2021-01-27 6.42 MB NO
Panasonic fire alarm catalog 2021-01-15 6.38 MB EN
Panasonic fire alarm catalog, Spanish 2020-11-28 6.37 MB ES
