PipeDraw

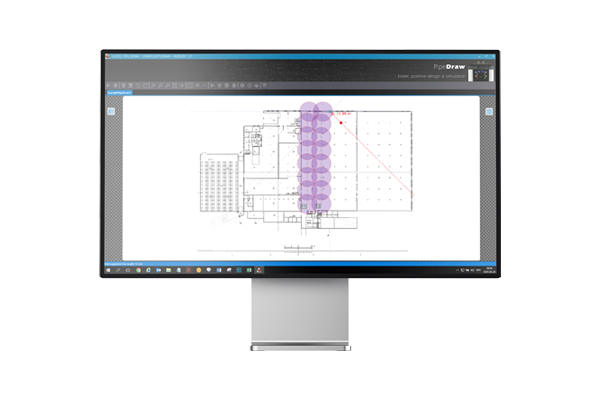

Import your building drawings and use the PipeDraw design and planning tool for your Aspect aspiration systems.

Features

  • Hole positions and sizes automatically calculated
  • Coverage areas shown in the drawings
  • Verification reports for detection sensitivity and smoke transportation times
  • Materials list for easy purchasing

Specifications

  • PC program supporting use of dwg, dxf, and PDF formats
