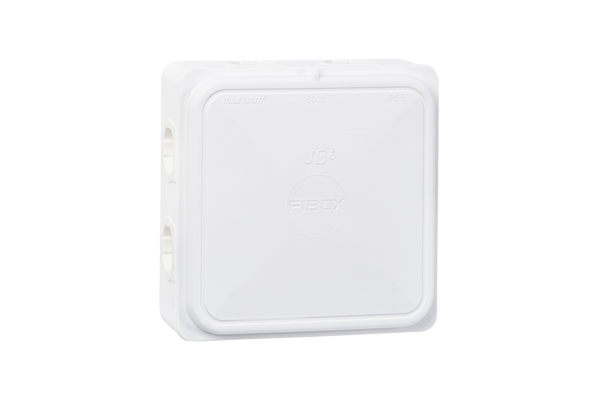

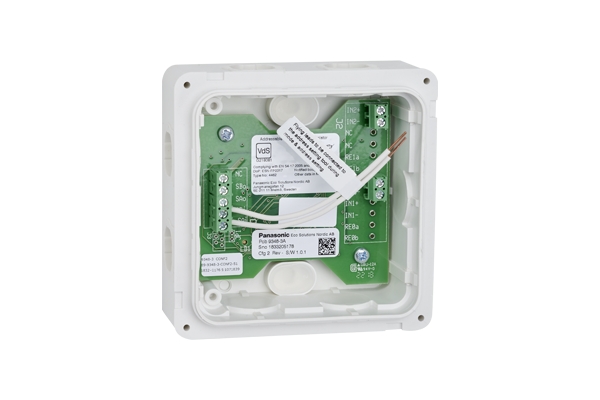

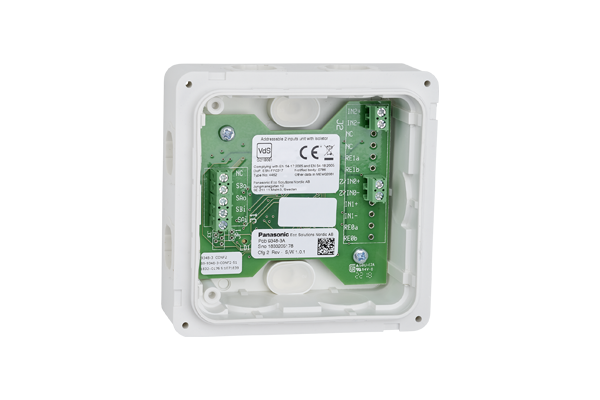

2 inputs unit 4462
Features
- Ideal for montoring for example sprinklers
- Built-in isolator
- Supports auto-addressing
- Two Monitored inputs
- IP65 housing
- Approved according to EN54-17 and EN54-18
- Vds Approval: G218081
- CPR: 0786-CPR-21589
Specifications
- Operating temperature: - 10 to +50 °C
- Ambient humidity: < 95%
- Dimensions: 110 x 110 x 49 mm
- Weight: 188 g
- IP rate: IP65
Leaflets
| Description | Release date | File size | Language |
|---|---|---|---|
| Produktdatablad, Adresserbar inngangsenhet med isolator, 2 innganger 4462 | 2024-07-11 | 538.76 KB | Norwegian |
| Ficha de producto, Unidad de Entradas direccionable con aislador 4462 | 2024-07-11 | 537.51 KB | Spanish |
| Leaflet, Addressable 2 inputs unit with isolator 4462 | 2024-07-11 | 537.98 KB | English |
Catalogues
| Description | Release date | File size | Language |
|---|---|---|---|
| Panasonic fire alarm catalog, Norwegian | 2023-05-22 | 8.6 MB | Norwegian |
| Panasonic fire alarm catalog | 2023-05-22 | 8.59 MB | English |
| Panasonic fire alarm catalog, Spanish | 2023-05-22 | 8.66 MB | Spanish |
Declaration of Performances
| Description | Release date | File size | Language |
|---|---|---|---|
| DoP, Addressable 2 inputs unit with isolator 4462 | 2019-05-19 | 95.15 KB | EN |
Technical description
| Description | Release date | File size | Language |
|---|---|---|---|
| Descripción técnica, Unidad de 2 entradas direccionable con aislador 4462 | 2024-08-19 | 725.82 KB | Spanish |
| Technical description, Addressable 2 inputs unit with isolator 4462 | 2024-08-19 | 699.15 KB | English |
BIM-data
| Description | Release date | File size | Language |
|---|---|---|---|
| BIM models, I/O units | 2023-07-05 | 7.12 MB | |
| BIM family models, I/O units | 2023-07-05 | 3.78 MB | |
| User manual, BIM Library | 2024-02-20 | 2.92 MB | English |
