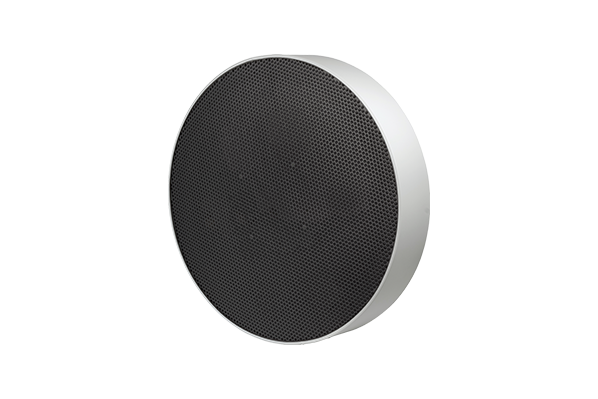

Omnidirectional loudspeaker ABT-OMN100
Features
- 100 W omnidirectional pendant loudspeaker for indoor environments
- 360° coverage for uniform sound distribution across large open areas
- High speech intelligibility for clear emergency guidance
- Ideal for use in spacious areas like airports, high-bay warehouses, sports arenas, shopping malls, train stations, museums, and similar locations
- Effective sound coverage of areas up to 900 m²
- Tested and approved according to EN54-24
- CPR: 1438-CPR-1113
Specifications
- Operating temperature: -10 to +55 °C
- Ambient humidity: < 95%
- Dimensions: Ø750 x 400 mm
- Weight: 24 kg
- Effective frequency range: 60 - 20000 Hz
- Tappings 100 V line: 100 / 50 / 25 W
- SPL @ 1 m: 113 dB / 145° H / 145° V
- IP class: IP42
