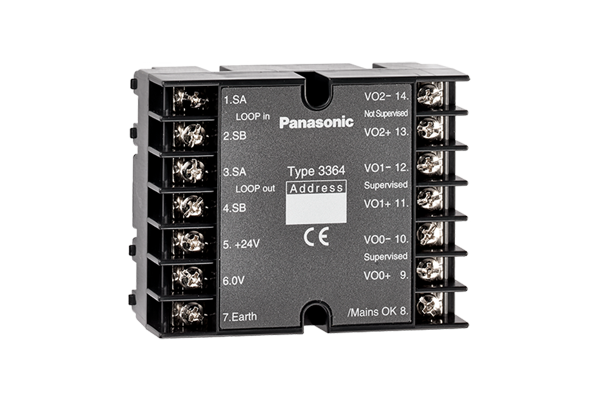

2 voltage outputs unit 3364
Features
- Two programmable and supervised outputs ideal for alarm devices
- One special output for fire-door closing controlled by:
- Control expression
- Mains failure
- Loop communication error
- Tested and approved according to EN54-18
- CPR: 0786-CPR-21201
Specifications
- Voltage: 24 V DC
- Operating temperature: - 10 to +55 °C
- Ambient humidity: < 90%
- Dimensions: 90 x 70 x 32 mm
- Weight: 108 g
Leaflets
| Description | Release date | File size | Language |
|---|---|---|---|
| Leaflet, Addressable 2 voltage outputs unit 3364 | 2023-10-02 | 584.07 KB | English |
| Produktdatablad, Adresserbar utgangsenhet 3364 | 2023-10-02 | 585.37 KB | Norwegian |
Catalogues
| Description | Release date | File size | Language |
|---|---|---|---|
| Panasonic fire alarm catalog, Norwegian | 2023-05-22 | 8.6 MB | Norwegian |
| Panasonic fire alarm catalog | 2023-05-22 | 8.59 MB | English |
| Panasonic fire alarm catalog, Spanish | 2023-05-22 | 8.66 MB | Spanish |
Declaration of Performances
| Description | Release date | File size | Language |
|---|---|---|---|
| DoP, Addressable 2 voltage outputs unit 3364 | 2019-05-27 | 108.98 KB | EN |
Technical description
| Description | Release date | File size | Language |
|---|---|---|---|
| Technical description, Addressable 2 voltage outputs unit 3364 | 2023-10-02 | 765.57 KB | English |
