EBLCloud
Highest security for remote operation and monitoring
INCREASED EFFICIENCY IN SERVICE AND MAINTENANCE
EBLCloud provides service and maintenance companies with a very powerful platform full of tools to make fewer, faster and more efficient site visits. The platform includes tools for planning, documenting, reporting, storage and predictive maintenance. EBLCloud will save you time and money in your daily work.
COMPREHENSIVE AND UNPARALLELED SECURITY

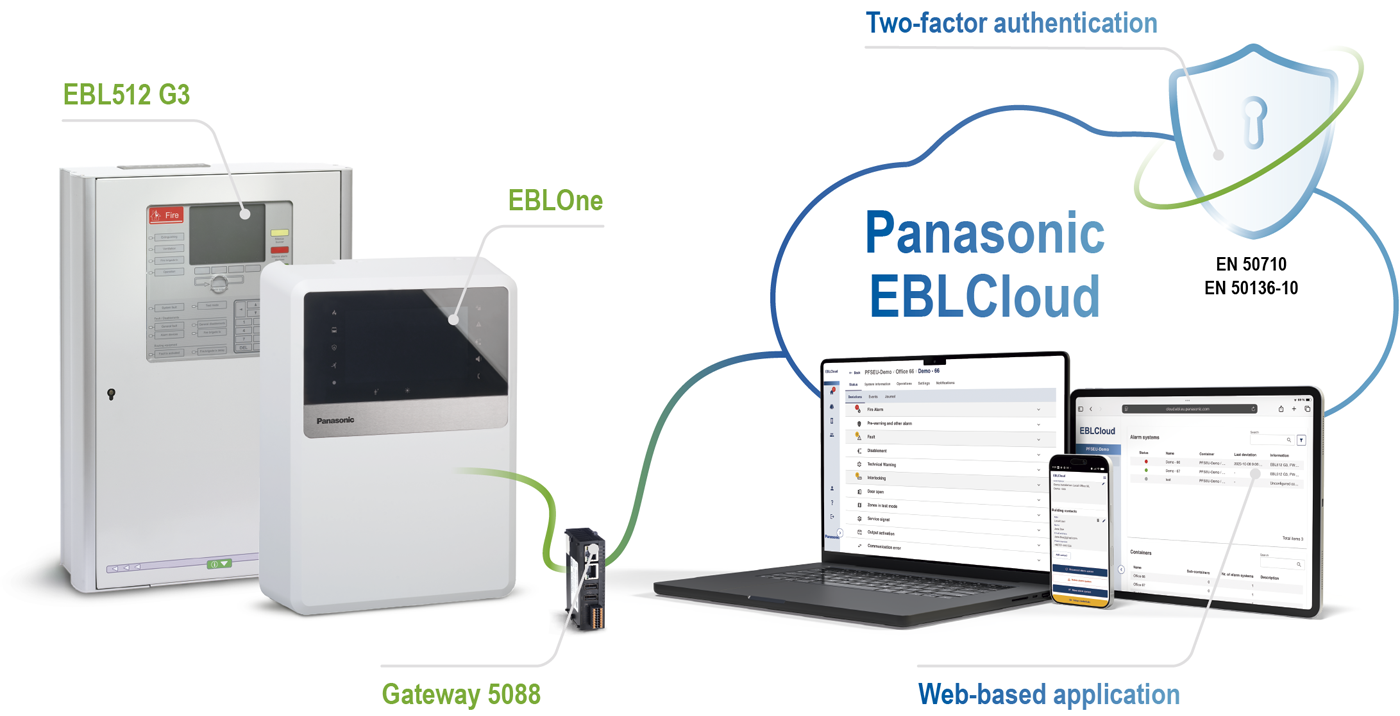

EBLCloud stands out with its robust and comprehensive security features. It fulfils the two relevant standards in this area: EN 50710 and EN 50136-10. All data is securely stored in a dedicated Panasonic area on Microsoft Azure servers located in Europe. With advanced security protocols like two-factor authentication and encryption, it protects your operations from unauthorised access and threats. This ensures a reliable platform that delivers the highest level of data security.
SEAMLESS FIRE SAFETY MANAGEMENT
EBLCloud streamlines fire safety management with advanced remote monitoring and operational features. It provides a comprehensive overview and enables quick responses in any situation. The platform’s universal compatibility ensures seamless access, allowing users to efficiently manage key tasks from anywhere.
ROLE-BASED ACCESS CONTROL
EBLCloud’s role-based access system ensures data protection and gives you complete control over who can access fire alarm installations. The access level hierarchy provides maximum flexibility while ensuring only authorised personnel have access to specific features, safeguarding security and operational integrity.
SCALABLE SOLUTIONS FOR EVOLVING NEEDS
EBLCloud empowers you to efficiently manage and expand your fire alarm systems with the highest level of security and continuous platform development.
Get started with EBLCloud
PRE-CONDITIONS
- Gateway connected to Internet
- Outgoing traffic to Internet on port 443
- Gateway SW version 2.11.3 and 3.9.2 or later
- EBLWin version 2.11.3 and 3.9.2 or later
- A functioning EBL System version 2.11.X and 3.9.X
- Invitation from EBL Cloud
THE GATEWAY NEEDS THE FOLLOWING TO SUPPORT EBLCLOUD
- New OS/BSP (Operating System) version. (BSP-UN74-pa18-1-3-662)
- Update the EBL System and EBLWeb with software that supports EBLCloud. E.g. EBLWebLnx v3.9.2 or later
It´s possible to check in machine_config if the Gateway already includes OS/BSP 1.3.662 (or later) as Main OS / Config OS. Then you can skip STEP 1.
- STEP 1. Update Gateway 5088: Update BSP version (RTOS) via Web browser
- STEP 2a. Install EBLWeb with EBLCloud support. Dynamic IP (DHCP).
OR - STEP 2b. Install EBLWeb with EBLCloud support. Static IP.
- STEP 3. Getting started in EBLCloud
- STEP 4. Add a Local Office
- STEP 5. Add Fire Alarm System to EBLCloud
- STEP 6. Configuration for EBLCloud in Gateway
NOTE! Remember your password! Write down the new password!
IMPORTANT IN STEP 1
Since this OS will have more strict rules for security, once the unit restarts after update, you will be asked to create new passwords for admin and user accounts. There is no way to reset password or recover the Gateway. If you forget your password, you will not be able to use the Gateway anymore.
Now all configurations for EBLCloud are done, and after a few minutes, the Gateway should be able to connect to EBLCloud using temporary credentials.
Discover the functionalities of EBLCloud
EBLCloud provides a powerful suite of functionalities designed to meet your evolving needs. With real-time monitoring, you can effortlessly monitor installations and ensure optimal performance at any time. As your requirements grow, EBLCloud will scale with you, introducing new and enhanced features to keep your systems equipped with the latest technology and safety standards.
Leaflets
| Description | Release date | File size | Language |
|---|---|---|---|
| Ficha de producto, EBLCloud | 2026-01-20 | 171.46 KB | Spanish |
| Leaflet, EBLCloud | 2026-01-20 | 190.3 KB | English |
| Produktdatablad, EBLCloud | 2026-01-20 | 191.38 KB | Norwegian |
Catalogues
| Description | Release date | File size | Language |
|---|---|---|---|
| Panasonic fire alarm catalog, Norwegian | 2023-05-22 | 8.6 MB | Norwegian |
| Panasonic fire alarm catalog | 2023-05-22 | 8.59 MB | English |
| Panasonic fire alarm catalog, Spanish | 2023-05-22 | 8.66 MB | Spanish |
| Gateway brochure | 2024-03-21 | 2.32 MB | English |
| EBLCloud brochure | 2026-01-20 | 4.5 MB | English |
| Spanish, EBLCloud, folleto | 2026-01-20 | 4.48 MB | Spanish |
| Norwegian, EBLCloud, brosjyre | 2026-01-20 | 4.49 MB | Norwegian |
Technical description
| Description | Release date | File size | Language |
|---|---|---|---|
| Technical description, EBLCloud | 2026-02-05 | 991.04 KB | English |
