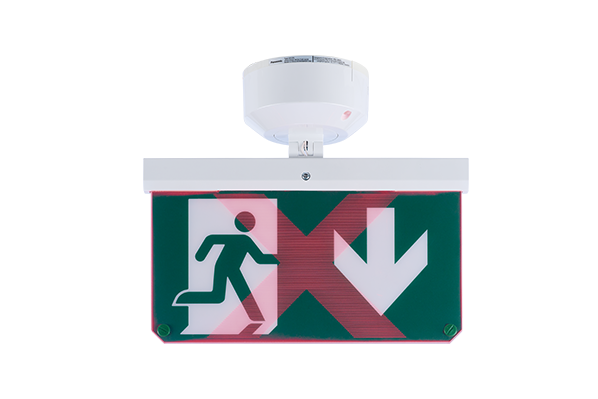

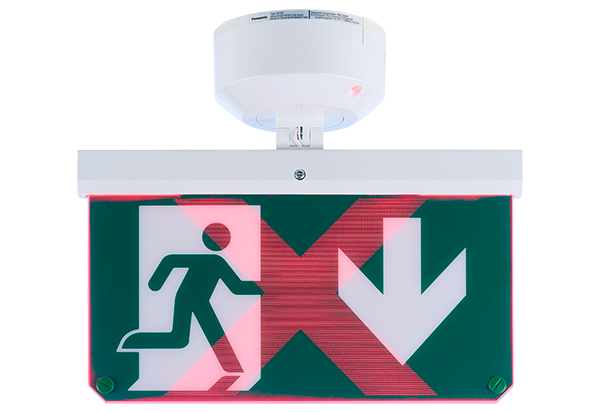

Adaptive exit light MX25 red X & MX40 red X
Features
- For safest evacuation possible:
- Dynamic control of the evacuation routes
- Minimised risk to enter smoke filled areas
- For all buildings with more than one exit
- Cost effective and eco friendly:
- LED Technology
- Low voltage
- Low maintenance
- Self-contained
- Simple and fast installation
- Innovative and intelligent:
- Monitored for highest safety
- Addressable for individual control and testing
- Automatic test system for highest safety and comfort
- 1 or 3 h battery back-up

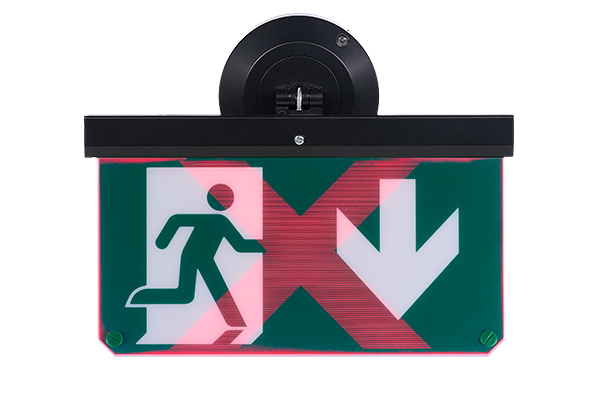

- Available in white or black colour
- Tested and approved according to EN60592-2-22, EN1838, EN62034, and EN ISO:7010
Specifications
- Batteries: Ni-MH 1.2V / 1 h, Ni-MH 2.4V / 3 h
- Operating temperature: - 0 to +55 °C
- Ambient humidity: < 95%
- Dimensions: MX25: 102 x 261 x 225 mm, MX40: 102 x 411 x 300 mm
- Weight: MX25: 395 g, MX40: 710 g
- Viewing distance: MX25: 25 m, MX40: 40 m
- Luminance: >2 cd/m2
Leaflets
| Description | Release date | File size | Language |
|---|---|---|---|
| Leaflet, Exit Light MX25 red X and MX40 red X | 2026-05-03 | 492.66 KB | English |
| Ficha de producto, Luz de evacuación adaptativa MX25 rojo X y MX40 rojo X | 2026-05-03 | 492.62 KB | Spanish |
| Produktdatablad, Markeringslys MX25 rød X og MX40 rød X | 2026-05-03 | 494.46 KB | Norwegian |
Catalogues
| Description | Release date | File size | Language |
|---|---|---|---|
| Panasonic fire alarm catalog, Norwegian | 2023-05-22 | 8.6 MB | Norwegian |
| Panasonic fire alarm catalog | 2023-05-22 | 8.59 MB | English |
| Panasonic fire alarm catalog, Spanish | 2023-05-22 | 8.66 MB | Spanish |
| Norwegian, EMEX, Nødlys & Markeringslys, brosjyre | 2026-04-29 | 16.35 MB | Norwegian |
| EMEX, Emergency & exit lights brochure | 2026-04-29 | 16.4 MB | English |
| Spanish, EMEX, Luces de evacuación y emergencia folleto | 2026-04-29 | 16.36 MB | Spanish |
Technical description
| Description | Release date | File size | Language |
|---|---|---|---|
| Technical description, MX25, MX40, MX Light and MX IP65 | 2026-05-03 | 3.5 MB | English |
BIM-data
| Description | Release date | File size | Language |
|---|---|---|---|
| BIM models, Exit light and Emergency light | 2024-03-03 | 338.4 MB | |
| BIM family models, Exit light and Emergency light | 2024-03-03 | 37.65 MB | |
| User manual, BIM Library | 2024-02-20 | 2.92 MB | English |
