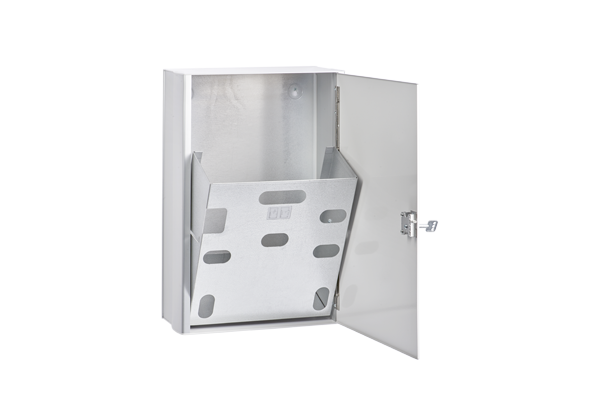

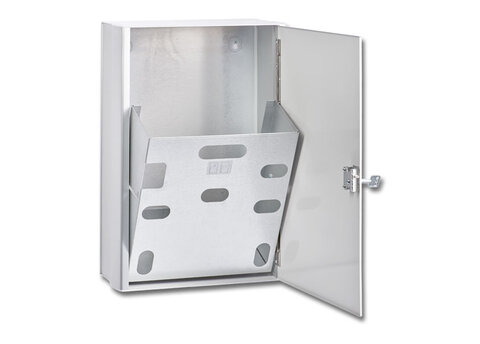

Cabinet for drawings (EBL512 G3) 5013

Features

  • Only for EBL512 G3
  • Metal cabinet intended for building drawings / zone maps, operating instructions etc.
  • Documents in A3 size can easily be stored in the cabinet
  • Easy access to the drawings with the container that can be lifted / pulled out
  • For wall mounting
  • The same type of key as to the EBL512 G3 c.i.e.

Specifications

  • Operating temperature: - 10 to +50 °C
  • Ambient humidity: < 95%
  • Dimensions: 438 x 628 x 187 mm
  • Weight: 18 kg
