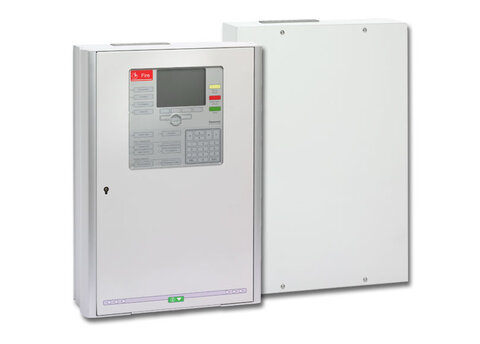

System EBL512 G3

EBL512 G3 is an analog addressable fire alarm system that fulfils EN54-2 (Control and Indicating Equipment) and EN54- 4 (Power supply). The control unit has four loops and to each CIE can 1020 addressable loop units be connected, out of which up to 512 can be alarm points.

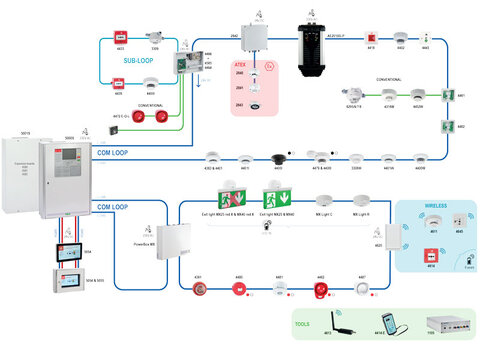

Each CIE can work standalone or be connected in a redundant network with up to 30 units, which accordingly means that a full system can include more than 30 600 addressable loop units. A networked system is built up in such a way that each CIE has full access to all information from all the other  units in the same network. This also means that the whole system can be controlled from any CIE in the network. The system can be remotely monitored and operated in a secure way and also very easily be connected to building management systems, all via an optional WEB server.

For very easy configuration of both the fire alarm system and also external controls, like fire doors, fans, escalators etc an intuitive free of charge Windows program is available.

Product downloads

Leaflets

Description Release date File size Language
Leaflet, EBL512 G3 Control and indication equipment 5000S and 5001S 2024-06-03 173.07 KB EN
Spanish: Ficha de producto, Equipo de Control e Indicación 5000S, 5001S 2024-06-03 153.73 KB ES
Norwegian: Produktdatablad, Brannalarmsentral EBL512 G3, 5000S, 5001S 2024-06-03 173.07 KB NO

Catalogues

Description Release date File size Language
Panasonic fire alarm catalog, Norwegian 2023-05-22 8.6 MB NO
Panasonic fire alarm catalog 2023-05-22 8.59 MB EN
Panasonic fire alarm catalog, Spanish 2023-05-22 8.66 MB ES
Panasonic system brochure EBL512 G3 2024-04-18 4.18 MB EN
Panasonic system brochure EBL512 G3, Spanish 2024-02-12 2.95 MB ES

Declaration of Performances

Description Release date File size Language
DoP, EBL512 G3 Control and indication equipment 5000 2019-08-04 142.89 KB EN
DoP, EBL512 G3 Control and indication equipment 5001 2019-05-19 94.46 KB EN
DoP, EBL512 G3 Control and indication equipment 5000S 2021-04-19 1.13 MB EN
DoP, EBL512 G3 Control and indication equipment 5001S 2021-04-19 1.1 MB EN

BIM-data

Description Release date File size Language
BIM models, Control and indicating equipment 2023-07-05 8.74 MB
BIM family models, Control and indicating equipment 2023-07-05 6.87 MB
User manual, BIM Library 2024-02-20 2.92 MB
